Dobinsons 75mm IMS Monotube Lift Kit – Front Constant Load 40–70kg – Suzuki Jimny JB74 3‑Door (2018+)

Dobinsons 75mm IMS Monotube lift kit for Suzuki Jimny JB74 3‑Door (2018+) – GLX/Lite

Australian-made Dobinsons Spring & Suspension IMS monotube long‑travel kit targeting ~75mm lift (setup dependent). Front coils are suited to 40–70kg constant accessory load (commonly steel bull bar and/or winch builds). Choose the rear spring option that matches your constant rear load.

IMS shock highlights

• Monotube long‑travel shocks designed to handle heat and reduce fade on corrugations and long trips.
• Bolt‑on fitment (direct replacement).

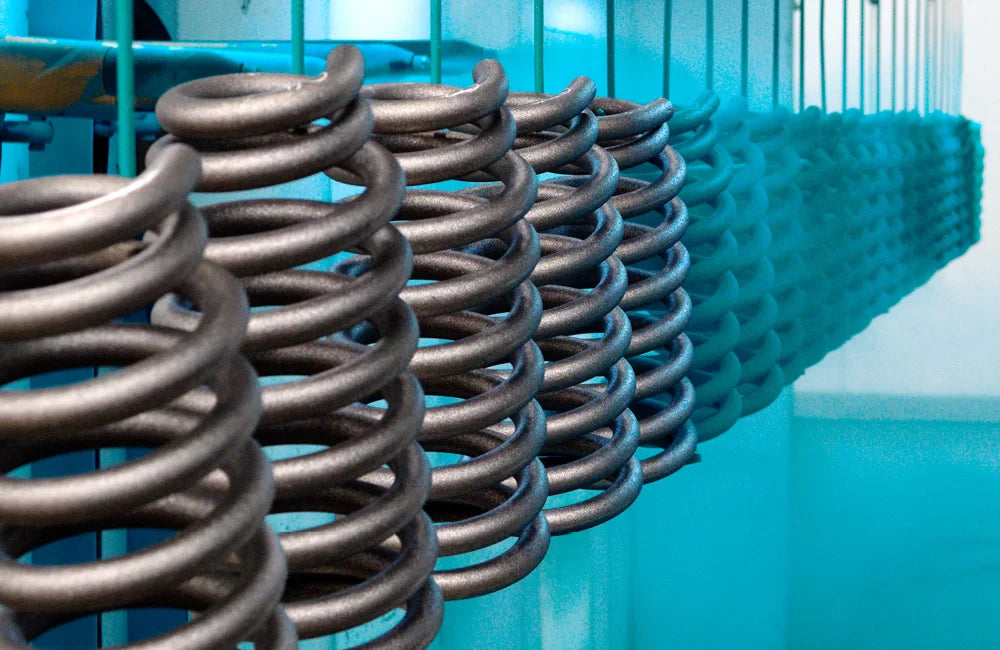

• EDP surface protection for corrosion resistance.
• High oil capacity with heavy‑duty construction and sealing system.
• CNC billet alloy piston designed for high-flow valving performance.

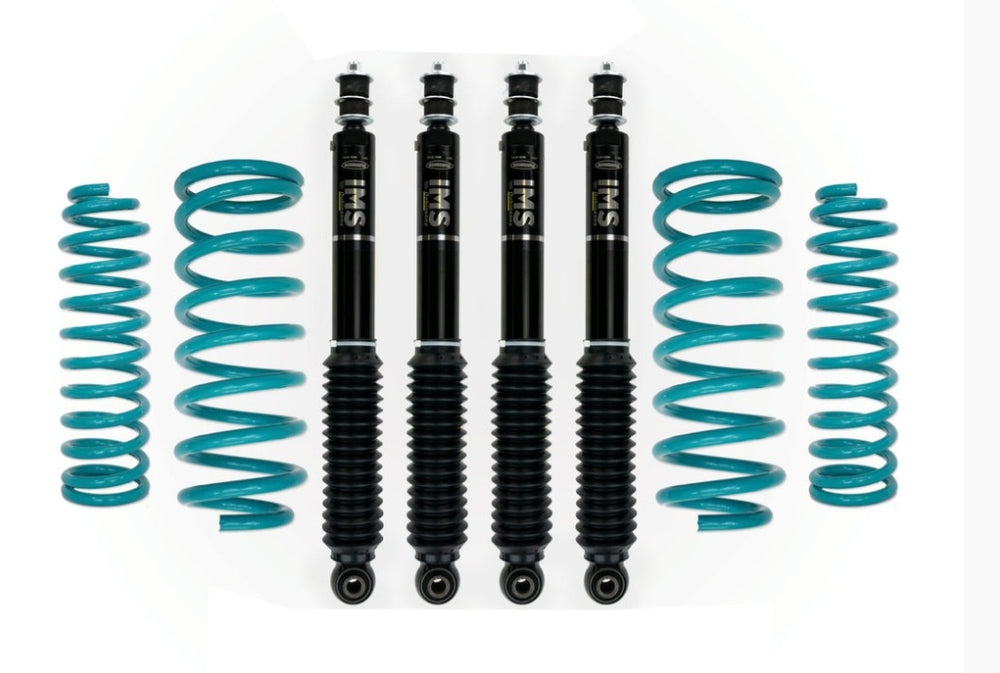

What’s included

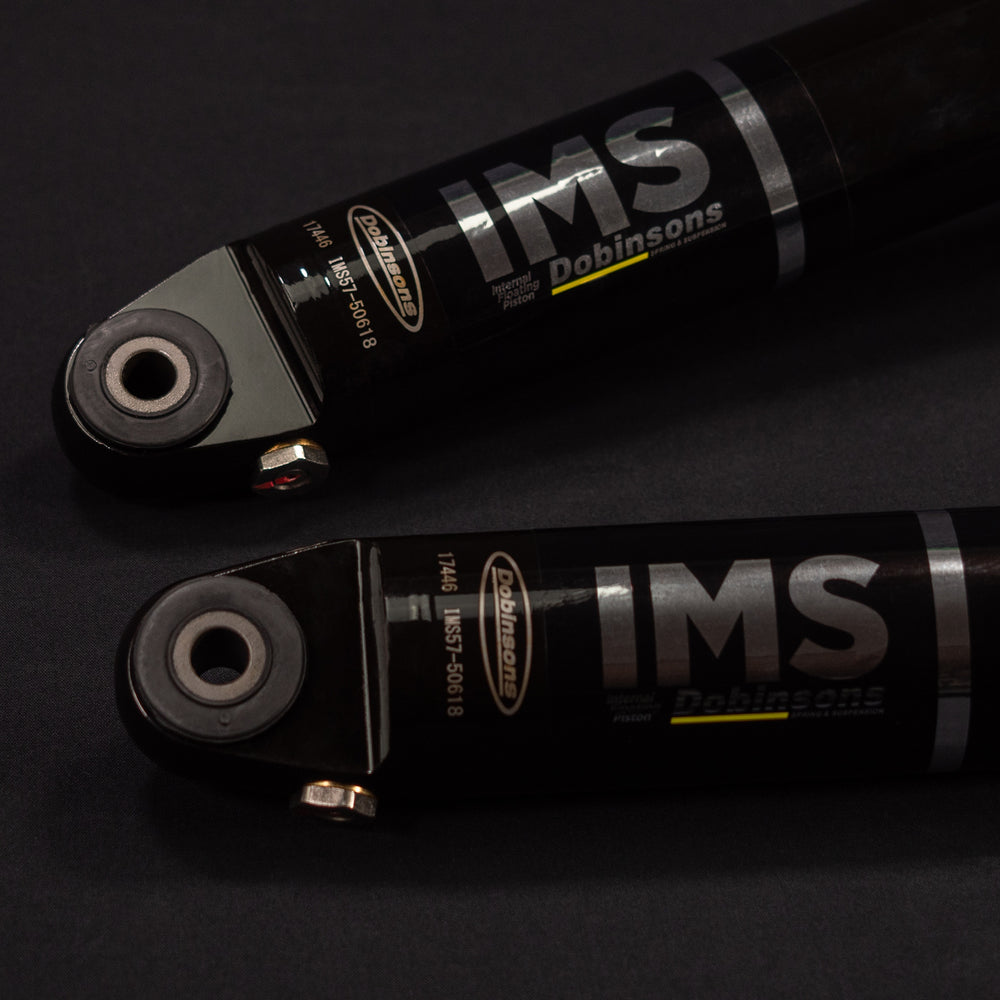

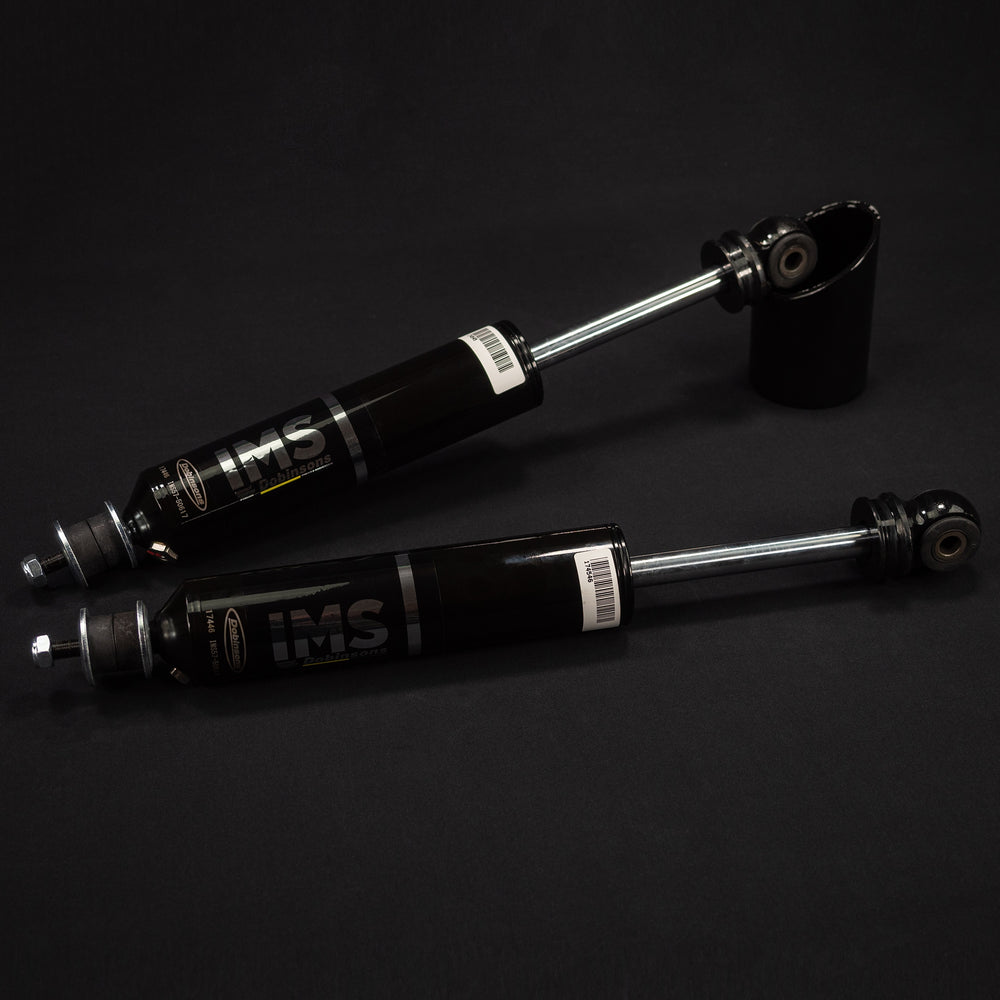

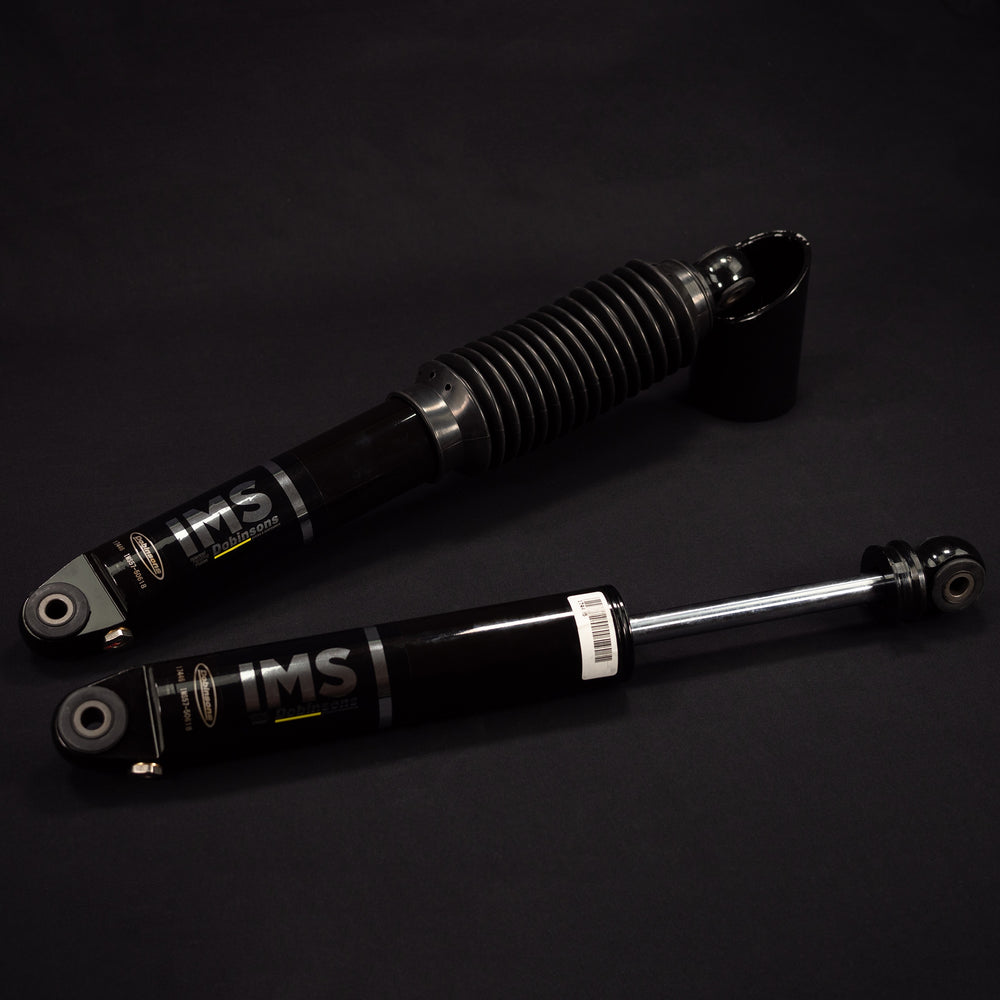

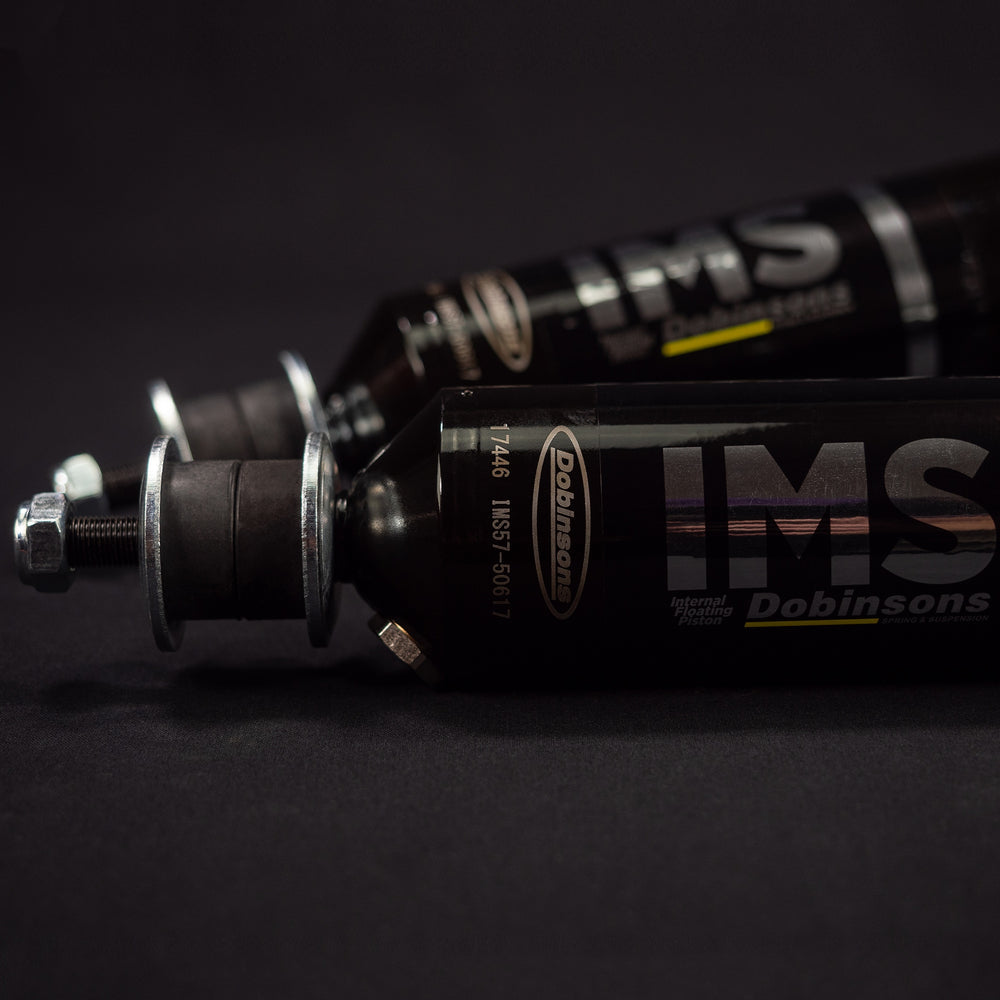

• IMS monotube long‑travel front shocks: IMS57‑50613 ×2
• IMS monotube long‑travel rear shocks: IMS57‑50614 ×2
• Front coil springs: C57‑148 (pair)
• Rear coil spring choice: C57‑147 (up to 60kg constant) or C57‑105 (80–150kg constant)
• Crossmember brace drop kit: WA57‑580 ×1
• Front heavy‑duty adjustable panhard rod (with bushes): PR57‑1422 ×1
• Rear heavy‑duty adjustable panhard rod (with bushes): PR57‑1413 ×1
• Eccentric castor correction bushes: WA57‑511K ×4
• Rear alignment castor kit: WA57‑511K ×1
• Headlight sensor bracket extension: WA57‑567K ×1
• Extended brake line kit: WA57‑596K (4 lines)

Fitment

• Suzuki Jimny JB74 3‑Door (2018+) – GLX/Lite

Install notes

• Wheel alignment recommended after installation.
• Lift height varies with accessories, load and spring selection.
