Dobinsons 75mm MRR Remote Reservoir Lift Kit – Front Constant Load up to 40kg – Suzuki Jimny JB74 3‑Door (2018+)
SKU: C57-146 + C57-147
$3,706.00
75mm (3”) Dobinsons MRR lift kit for Jimny JB74 – built to be tuned
Turn your JB74 Jimny into a confident touring and off‑road package with Dobinsons’ MRR remote‑reservoir monotube suspension system. MRR shocks are designed to manage heat and maintain control on corrugations and long runs, while 3‑way adjustment lets you fine‑tune comfort vs handling as your build evolves.
- 75mm lift target (setup dependent)
- MRR remote reservoir monotube shocks with 3‑way adjustable damping
- Front coils rated for up to 40kg constant accessory load (ideal for steel bull bar / winch)
- Choose your rear spring rating to match your constant load
- Includes key supporting hardware: panhard rods, caster correction, crossmember drop, brake lines + headlight sensor bracket
Choose the right rear spring option
Pick based on your constant rear load (weight carried most of the time):
- Up to 60kg constant – light touring and occasional cargo
- 100–150kg constant – permanent rear weight (drawers, rear bar, fridge, gear carried full‑time)

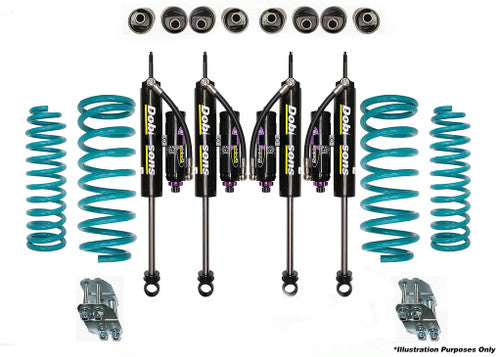

What’s included

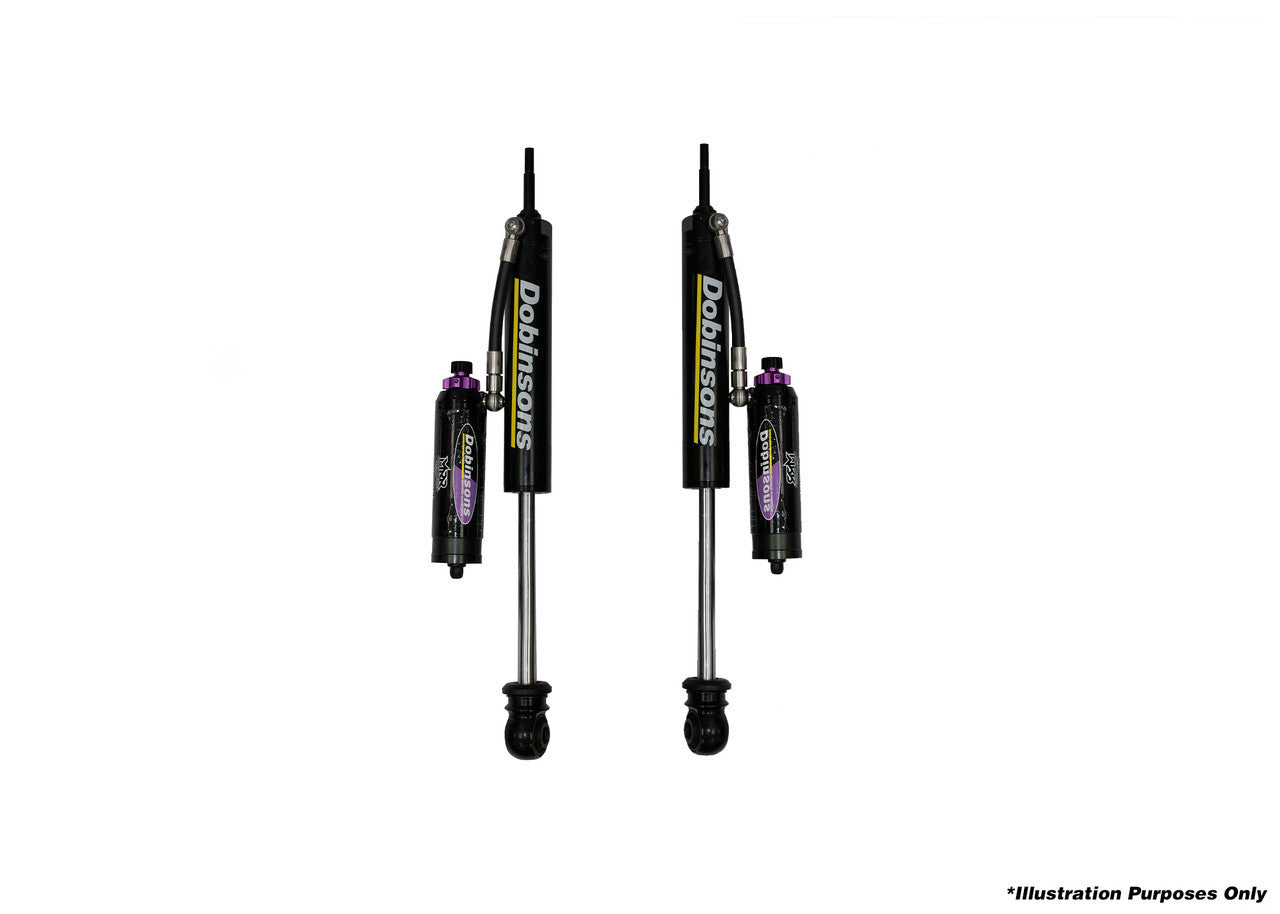

- MRR remote reservoir long‑travel front shocks (3‑way adjustable) – MRA57-A617 x2
- MRR remote reservoir long‑travel rear shocks (3‑way adjustable) – MRA57-A618 x2
- Front coil springs (75mm lift, up to 40kg constant load) – C57-146 (pair)
- Rear coil choice: C57-147 (up to 60kg constant) or C57-105 (100–150kg constant) – pair
- Crossmember brace drop kit – WA57-580

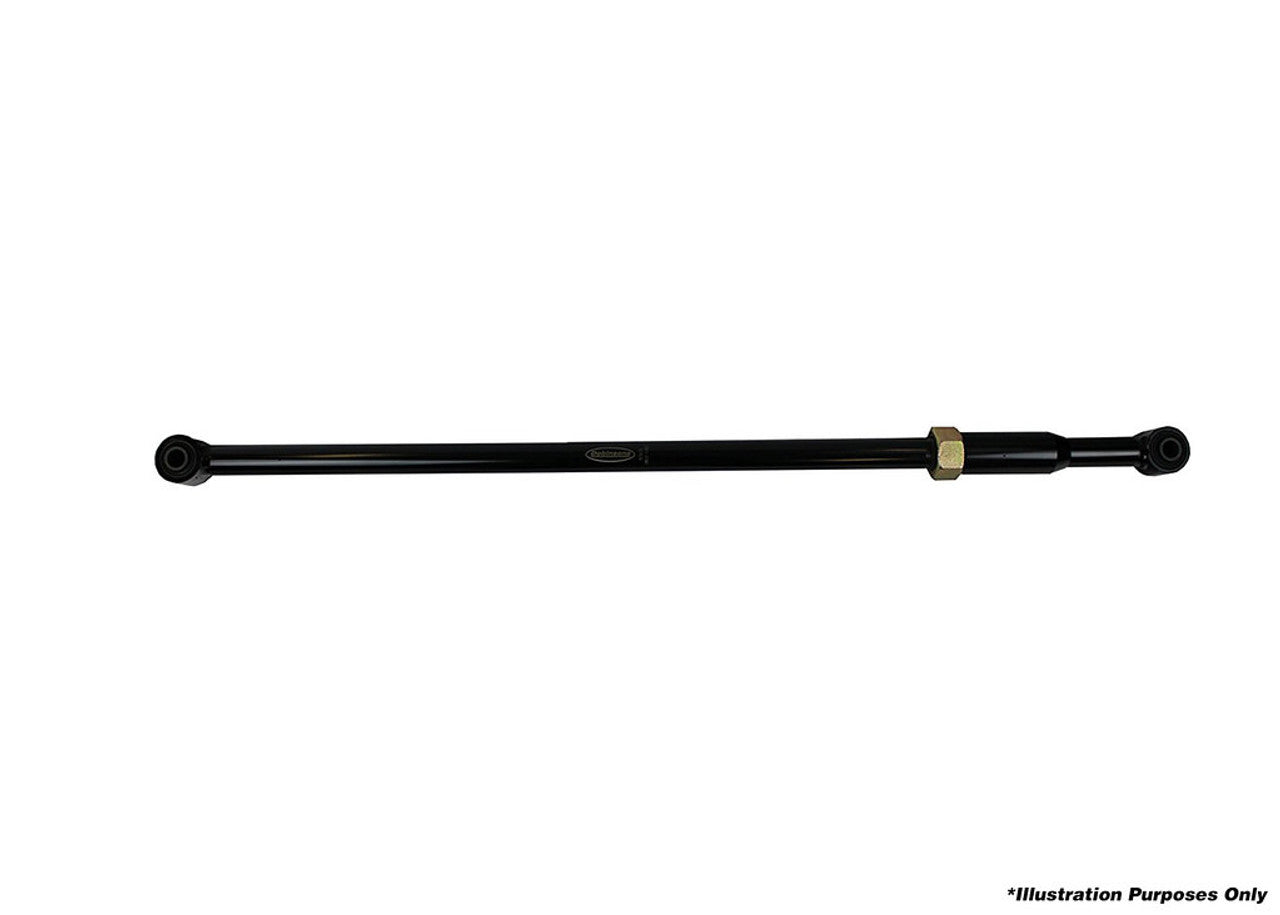

- Front heavy duty adjustable panhard rod (with bushes) – PR57-1422
- Rear heavy duty adjustable panhard rod (with bushes) – PR57-1413
- Eccentric caster correction bushes (±2.5–3°) – WA57-511K x4
- Rear alignment caster kit – WA57-511K
- Headlight sensor bracket extension – WA57-567K
- Extended brake line kit (4 lines) – WA57-596K
Fitment
- Suzuki Jimny JB74 (GLX / Lite) 3‑Door – 2018 to current
Install notes
- Wheel alignment is recommended after installation.
- Lift height varies with vehicle weight, accessories and spring choice.
